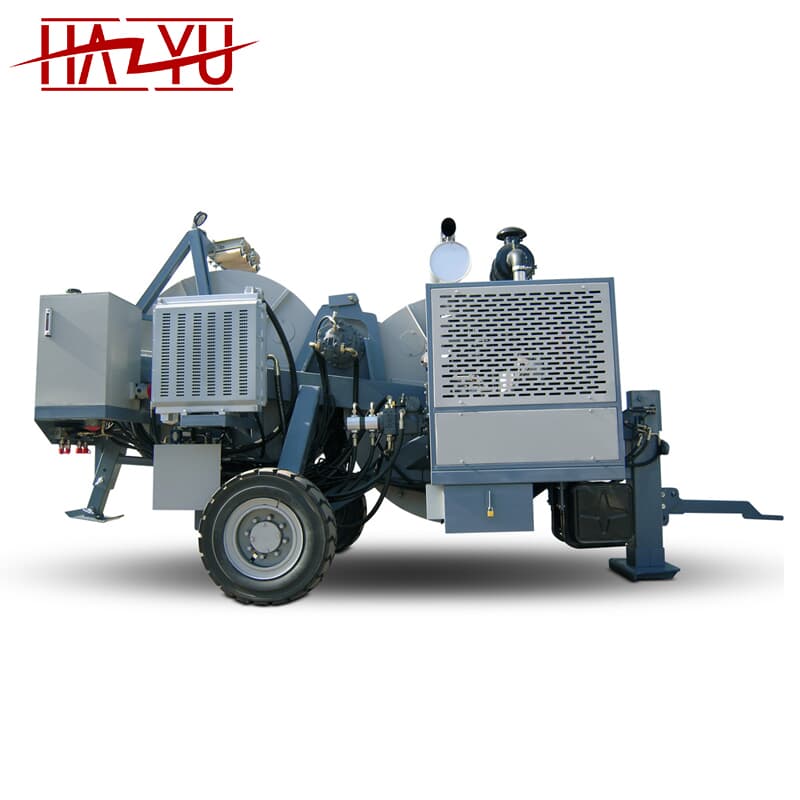

2X45kN Hydraulic Puller Tensioner Machine Cummins Engine
2X45kN Hydraulic Puller Tensioner Machine Cummins Engine
The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls.
The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled.
Transmission Line Stringing Equipment Hydraulic Puller-tensioner
| Model | GL25TP | GL35TP | GL45TP | GL90TP | GL140TP | GL2X45TP | GL2X70TP | |
| Puller | ||||||||
| Max pull | kN | 25 | 35 | 45 | 90 | 140 | 2x45/ 1x90 | 2x70/ 1x140 |
| Speed at max pull | km/h | 1.3 | 2.6 | 2.7 | 2.4 | 1.7 | 2.4 | 2 |
| Max speed | km/h | 4 | 4.5 | 5 | 5 | 4 | 5 | 4.5 |
| Pull at max speed | kN | 8 | 20 | 25 | 44 | 60 | 2x22/ 1x44 | 2x30/ 1x60 |
| Tensioner | ||||||||
| Max tension | kN | 25 | 35 | 45 | 90 | 140 | 2x45/ 1x90 | 2x70/ 1x140 |
| Max speed | km/h | 5 | 4.5 | 5 | 5 | 4 | 5 | 4.5 |
| Engine | ||||||||
| Diesel | kw(hp) | 48(64) | 48(64) | 63(85) | 118(158) | 129(173) | 118(158) | 129(173) |
| Cooling system | Water | |||||||
| Electrical system | V | 24 | ||||||
| Characteristics | ||||||||
| Bull-wheel diameter | mm | 1500 | 1200 | 1500 | 1500 | 1500 | 1500 | 1700 |
| Max rope diameter | mm | 10 | 13 | 16 | 18 | 24 | 18 | 24 |
| Max conductor diameter | mm | 36 | 34 | 34 | 40 | 40 | 40 | 46 |
| Total weight | kg | 2300 | 2200 | 3000 | 4600 | 6800 | 6200 | 8000 |
| Overall dimension | mm | 3520*2000 *2200 | 4000*2000 *2300 | 4000*2000 *2300 | 4700*2200 *2300 | 4700*2200 *2300 | 4700*2300 *2700 | 4700*2300 *2700 |
| Main configuration | ||||||||
| Engine | Cummins | |||||||
| Hydraulic pump | German Rexroth | |||||||
| Main motor | German Rexroth | |||||||
| Speed reducer | German Rexroth | |||||||
| Hydraulic meter | German WIKA | |||||||
| Operating handle | German Rexroth | |||||||
Transmission Line Stringing Equipment Hydraulic Puller-tensioner
Configuration (2X45kN Hydraulic Puller Tensioner Machine Cummins Engine)
Negative self-acting hydraulic brakes
Hydraulic dynamometers with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
Hydraulic front stabilize
Hydraulic Transmission(2X45kN Hydraulic Puller Tensioner Machine Cummins Engine)
2 Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value
(also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Additional Devices(2X45kN Hydraulic Puller Tensioner Machine Cummins Engine)
Lighting system for the trailer
Hydraulic brake system for the trailer (extra charge)
2 Hydraulic conductor clamps for drum change operations (extra charge)
Electronic pull and speed recorder
