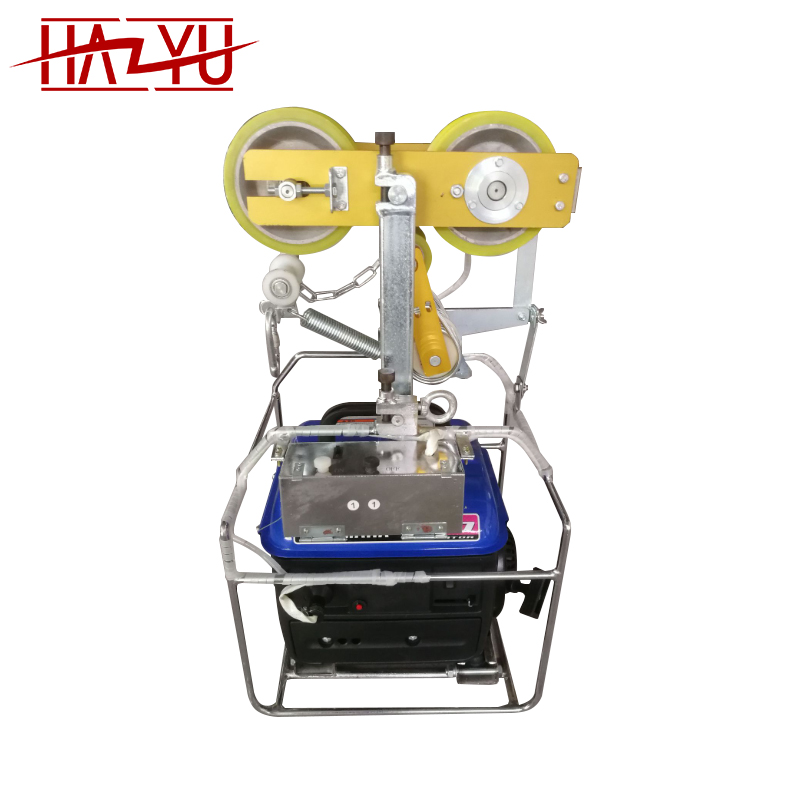

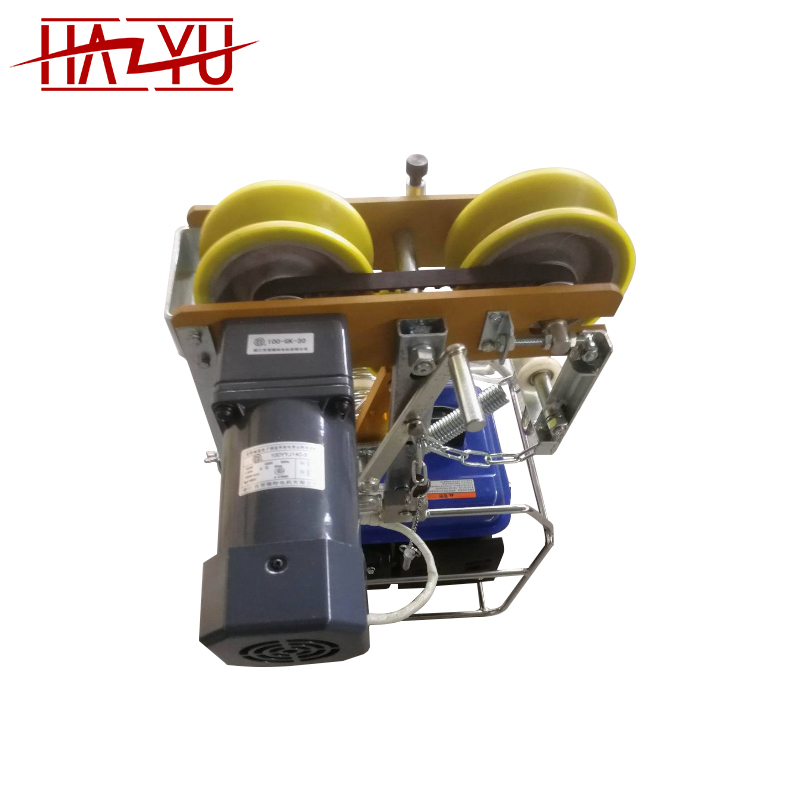

OPGW Construction Self-Moving Traction Machine

stars, based on ( 0 )reviews

$1400.00 set

Model	BZZCS350
Block passed diameter range(mm)	φ9-φ13
Maximum creeping angle (°)	31
Gasoline engine	YAMAHAET950
Driving dynamo type	100YYJ140-3(140W)
Remote control linear distance(m)	300~500
Dimension (mm)	422x480x758
Running speed (m/min)	17
Horizontal pull (N)	350
Weight (kg)	46.5

Description:

The self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another.

It is always used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.

Advantages:

1.Self driving by gasoline engine

2.Electric motor system.

3. Automatic brake system for emergency stop

4. Remote control system for controlling the machine on overhead line.

5.Special Mechanical system for preventing reverse driving of machine.

6.Easy operation

Remarks:

We have developed whole set of machines and tools for OPGW line installation.
